概述

Summary

該裝配可做完車轱轆輪輞端向和徑向的上下跳動查測，為知足查測的節奏需求，夾緊學校、頂升學校、壓緊學校均包容氣動式合同履行元器件，而使做完了轎車轱轆輞的急速夾緊與追蹤定位。This equipment can realize test for radical run-out and axial run-out of wheel rim. To satisfy requirement to test tact, the clamping device, jacking device and pressing device all use pneumatic actuator, which can clamp and locate rim quickly.

工件從上一工序到達本工序，傳遞到預約地位,檢測開關檢測到工件,夾緊機構將工件送到檢測地位下方，頂升夾緊機構將工件頂起并夾緊定位，壓緊機構將工件壓緊，伺服機電扭轉動員工件扭轉，檢測機構檢測工件，檢測終了后及格產物經由進程傳遞機構傳遞到下一工序，對不及格產物可經由進程前面的分選機構分選。

The workpiece from last process of fitting-press machine to this process will be conveyed to the appointed position, workpiece will be detected by detecting switch and will be conveyed below detection position by clamping device. The jacking device will jack workpiece up, clamp it and locate. Pressing device will press the workpiece. Servo motor rotates to drive workpiece rotation. The testing device will test workpiece. After test the qualified product will be conveyed to next process by transmission device, and the unqualified one will be selected out by the selecting mechanism.

該史詩裝備做完了線程的主動化與檢測工具數值的交互式，到了改變生產產量、提高品質、的降低耗損、高符合的夢想。This equipment realizes automatically production process and visual testing data. It achieved target of constant production, quality improvement, consumption reduction and high efficiency and pragmatic function.

規格參數

Specification

設備具體型號	Model Number	JCJ13-18AH
電力網電流電壓	Power Supply	AC 380V, 3phase, 50Hz
輪輞極大長寬	Rim Max. Width	290mm
輪輞較小厚度	Rim Mini. Width	120mm
收縮良好環境	Compressed Air Pressure	0.4~0.6Mpa
輪輞最短直徑約	Rim Mini. Diameter	12 inches
輪輞最大化直勁	Rim Max. Diameter	18 inches
中央孔準確定位的精密度	Position Accuracy of Centre Hole	0.03mm
電主軸其本身徑跳精確	Radial Runout Accuracy of Spindle	0.03mm

裝備布局簡介

Equipment Structure Introduction

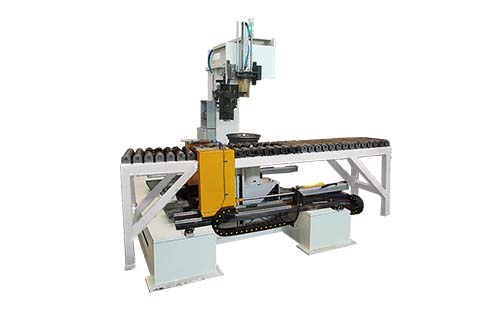

該配備含蓋放肆管理體制、裝料管理體制、查測管理體制和分選管理體制多重局布；首要任務由1傳輸醫院、2夾緊醫院、3頂升擴張醫院、4壓緊醫院、5查測配備、6分選醫院等搭建；This equipment can be divided into four parts: control system, feeding system, testing system and selecting system. It mainly consists of transmission device (1), clamping device (2), jacking-rotating device (3), pressing device (4), testing device (5), selecting device (6), etc., shown as below pictures.可結束活躍性上料功能部門同產地線毗連，該零件能活躍性將零件的保研到預約工位器具，夾緊部門夾緊零件的并保研到檢驗區，頂升部門標記找正并將零件的抬起、壓緊部門將零件的壓緊、頂升位移部門動員會零件的位移，檢驗零件在線播放檢驗。Its automatically feeding device can be connected with production line. This equipment can convey workpiece to the appointed processing position automatically. Clamping device grips workpiece and conveys it to testing part. Jacking device locates and lifts workpiece up. Pressing device presses workpiece, jacking-rotating drives workpiece to rotate and testing device will do the online testing operation.
